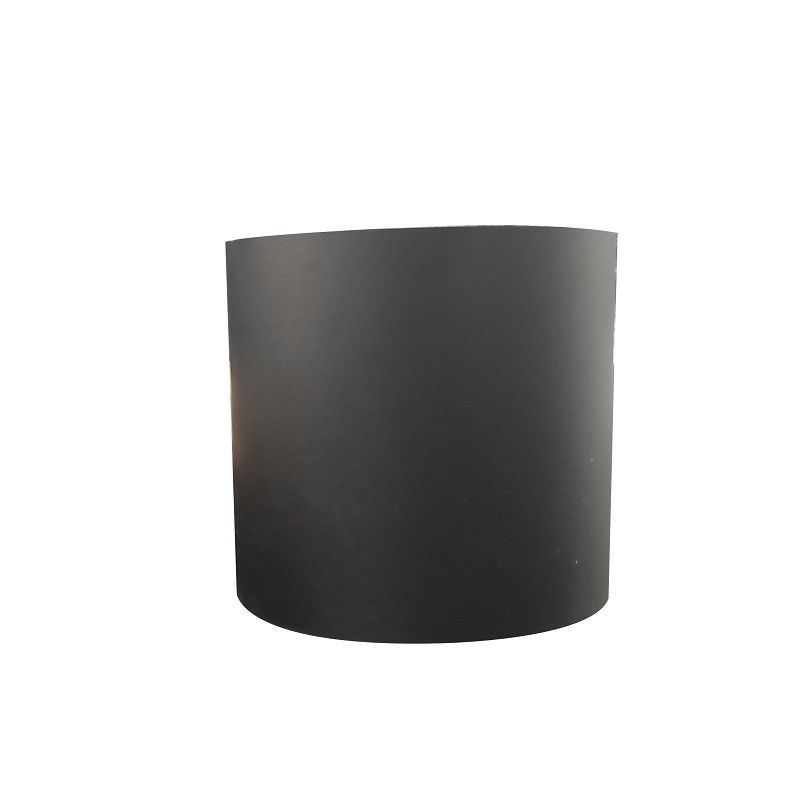

Black EP200 NN CP Pattern Rubber Conveyor Belts 15mm Height

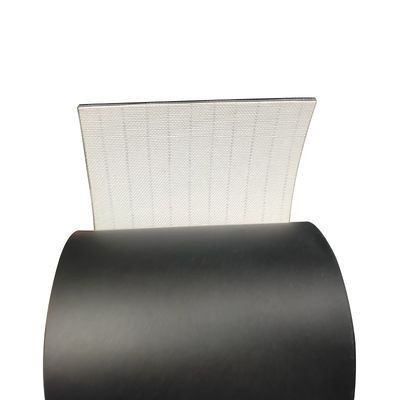

The pattern conveyor belt is an inclined conveyor belt composed of a cover rubber with a pattern-like working surface and a flat cover rubber with a non-working surface and a belt core.

1. Pattern type

1) Herringbone pattern
The characteristic belt surface has a "herringbone" pattern higher than the belt body. The pattern can be open or closed. Each pattern can be divided into three types: high, medium, and low.
It is suitable for conveying powdery, granular and small materials with an inclination angle of ≤40 degrees, and also for conveying bagged materials.
2) Striped pattern
The characteristic belt surface has striped patterns that are higher than the belt body. The patterns are divided into three types: high, medium and low. Each pattern can be divided into sparse and dense forms according to the arrangement spacing.
Purpose: Suitable for horizontal transportation of packages with an inclination angle of ≤30 degrees. If it is grooved, it can replace the herringbone pattern.
3) Grainy pattern
Features: There are grain patterns on the belt surface that are higher than the belt body or recessed into the belt body. The pits can also be made into square holes or prismatic and cloth patterns.

2. Maintenance of pattern conveyor belt

During transportation and storage, the pattern conveyor belt should be kept clean to avoid direct sunlight or rain and snow, avoid contact with acids, alkalis, oils, organic solvents and other substances, and be away from the heating device one meter away.
During storage, the warehouse temperature should be kept between 18-40 ℃, and the relative humidity should be kept between 50-80%.
During the storage period, the conveyor belt must be placed in a roll without being folded. During the storage period, it should be turned once every season.
Conveyor belts of different types and specifications are not suitable to be used together, and the joints should preferably be glued.
The type, structure, specification and number of layers of the conveyor belt should be selected reasonably according to the conditions of use.
The running speed of the conveyor belt should generally not be greater than 2.5 m/s. For materials with large lumps and abrasion and the use of fixed unloading devices, the speed should be as low as possible.
The relationship between the diameter of the transmission roller of the conveyor and the cloth layer of the conveyor belt, the matching of the transmission roller and the reversing roller, and the requirements for the groove angle of the idler should be selected reasonably according to the design requirements of the conveyor.
The feeding direction should follow the running direction of the conveyor belt. In order to reduce the impact on the conveyor belt when the material falls, a chute should be used to reduce the material falling distance; the conveyor belt receiving section should shorten the distance between the rollers and use the buffer roller as leakage , The belt conforms to adopt a soft and moderate baffle to prevent the baffle from being too hard and scratching the belt surface of the conveyor belt.
