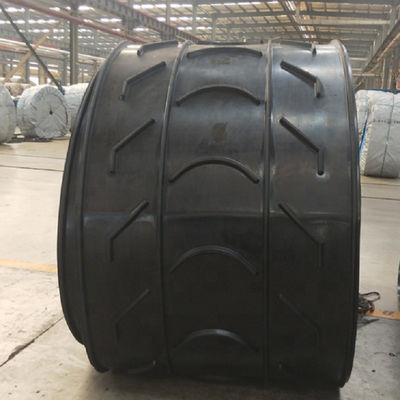

Herringbone Pattern Black Conveyor Belting 300-800mm Width
1) Core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), etc.
2) Bandwidth: 300～800mm
3) Pattern height: 5, 10, 15, 20mm Note: The pattern shape can be designed according to user requirements.
4) Features: Suitable for conveying materials with an inclination angle of 0-40° to prevent materials from sliding down.
Standards and main indicators
Ordinary steel cord conveyor belt
Flame-retardant steel cord conveyor belt
General flame-retardant steel cord conveyor belt
Heat-resistant steel cord conveyor belt
Wear-resistant steel cord conveyor belt
Shaoboer wear amount ≤90mm 3
Acid, alkali and oil resistant steel cord conveyor belt
Cold-resistant steel cord conveyor belt
Brittleness temperature -40℃
2. Pattern type

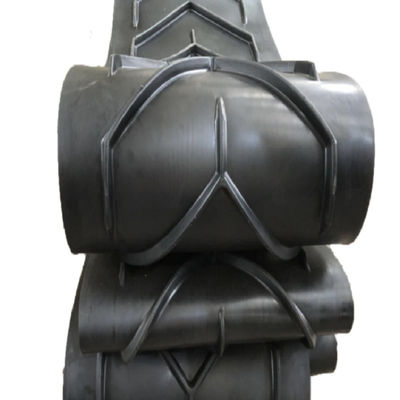

1) Herringbone pattern
The characteristic belt surface has a "herringbone" pattern higher than the belt body. The pattern can be open or closed. Each pattern can be divided into three types: high, medium, and low.
It is suitable for conveying powdery, granular and small materials with an inclination angle of ≤40 degrees, and also for conveying bagged materials. 2) Striped pattern
The characteristic belt surface has striped patterns that are higher than the belt body. The patterns are divided into three types: high, medium and low. Each pattern can be divided into sparse and dense forms according to the arrangement spacing.
Purpose: Suitable for horizontal transportation of packages with an inclination angle of ≤30 degrees. If it is grooved, it can replace the herringbone pattern. 3) Grainy pattern
Features: There are grain patterns on the belt surface that are higher than the belt body or recessed into the belt body. The pits can also be made into square holes or prismatic and cloth patterns.
3. Composition and variety
The pattern conveyor belt consists of two parts, the base belt and the pattern.
