OEM ODM Rubber Herringbone Pattern Conveyor Belt 500mm Width

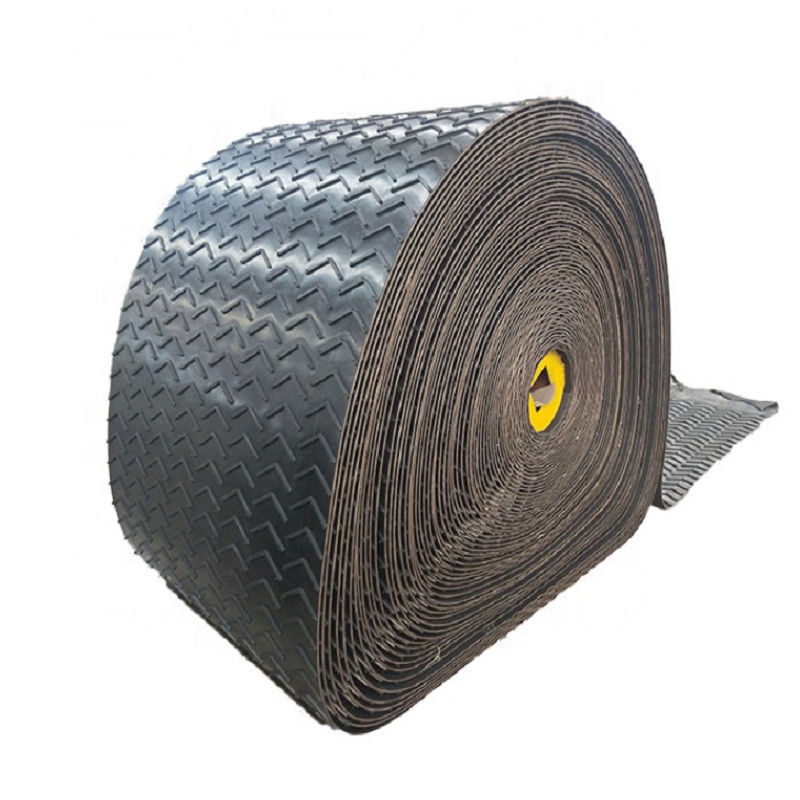

The pattern conveyor belt is an inclined conveyor belt composed of a cover rubber with a pattern-like working surface and a flat cover rubber with a non-working surface and a belt core. There are "herringbone" patterns on the belt surface that are higher than the belt body. The patterns can be open or closed. Each pattern can be divided into three types: high, medium and low.

1. Pattern type

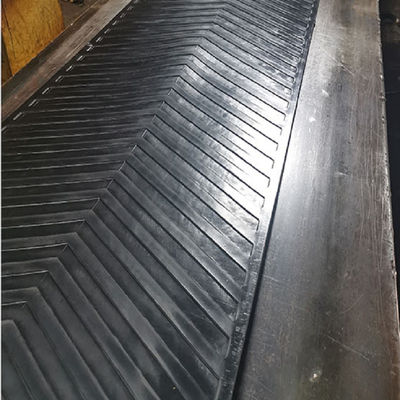

1) Herringbone pattern
The characteristic belt surface has a "herringbone" pattern higher than the belt body. The pattern can be open or closed. Each pattern can be divided into three types: high, medium, and low.
It is suitable for conveying powdery, granular and small materials with an inclination angle of ≤40 degrees, and also for conveying bagged materials.
2) Striped pattern
The characteristic belt surface has striped patterns that are higher than the belt body. The patterns are divided into three types: high, medium and low. Each pattern can be divided into sparse and dense forms according to the arrangement spacing.
Purpose: Suitable for horizontal transportation of packages with an inclination angle of ≤30 degrees. If it is grooved, it can replace the herringbone pattern.
3) Grainy pattern
Features: There are grain patterns on the belt surface that are higher than the belt body or recessed into the belt body. The pits can also be made into square holes or prismatic and cloth patterns.

<
