| Brand Name: | UCER |
| Model Number: | DS series |
| MOQ: | 50 Meters |
| Price: | $10.00 - $70.00/ Meter |
| Delivery Time: | 45 work days |
| Payment Terms: | L/C, T/T, D/P, CAD |

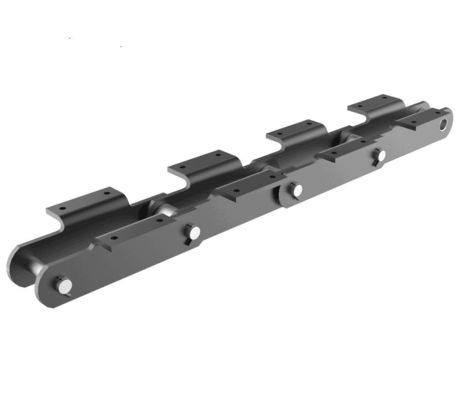

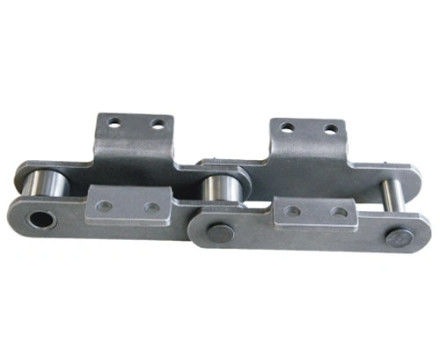

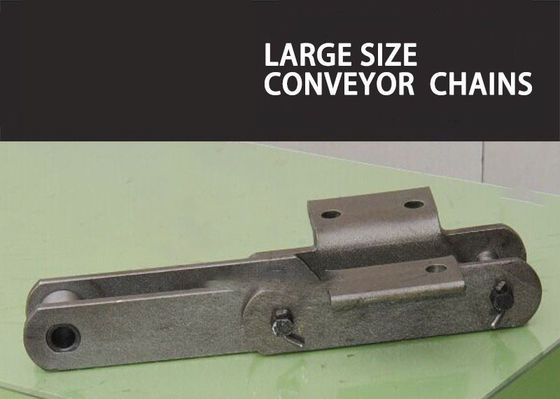

DS Large Size Inclined Cement Industrial Bucket Elevator Conveyor Chain
Quick Details
Place of Origin:Zhejiang, China
Brand Name:UCER
Model Number:DS
Structure:Roller Chain
Function:Conveyor Chain
Material:ALLOY
Standard or Nonstandard:Standard
conveyor chains name:double wide roller chain for Conveyor
conveyor chain type:with bending plate attchment
OEM or not:Could OEM size
heat treatment:all the chain parts undergo heat treatment
DS chain Color:black & gray
surface treatment:shot peening
Specification:Customized
chain plate material:35CrMoA or C45
packaging:standard
size&capacity:pls reference to the form
DS Large Size inclined cement industrial bucket elevator conveyor chain
1. different models
2. tensile strength: top to 600kn
3. according to your drawings
| Chain NO. | Pitch P | Inner link inner width b1 | Roller diameter d2 | Pin diameter d1 | Plate height h | Plate thickness T | Installation dimension L1*L2 | Hole diameter d3 |
| mm | ||||||||
| DS400 | 152.4 | 36.5 | 36 | 15.5 | 50 | 8 | 60*120 | 14 |
| DS540 | 152.4 | 36.5 | 36 | 15.5 | 50 | 8 | 60*120 | 14 |
| DS640 | 250 | 57.6 | 48.5 | 22.2 | 75 | 10 | 125*160 | 14 |
| DS800 | 250 | 67.4 | 63.5 | 31.75 | 90 | 12 | 100*160 | 16 |
Packing Delivery Shiping
Packaging Details:Packing: a DS conveyor chain + a poly bag + individual box + wooden case
Port:shanghai ,ningbo
Delivery Details:
Recommend Products
Our Service
1. UCER chain supply OEM/ODM service.
2. We have been producing all kinds of standard chains and special chain: Driving Chain, Agriculture Chain, Conveyor Chain, Long Pitch Conveyor Chain, Stainless Steel Chain, Hoisting Chain, Motorcycle Chain, Dropped Forged Rivetless Chain and so on.
