| Place of Origin: | China |
|---|---|
| Brand Name: | UCER |
| Certification: | Enterprise credit rating AAA |
| Model Number: | EP100/EP150/EP200/EP250/EP300 |
| Minimum Order Quantity: | 100 meters |
| Price: | Negotiable |
| Packaging Details: | Iron packing, iron frame or other |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 10000 per month |
| Color: | Black | Bandwidth: | 300mm |
|---|---|---|---|
| Cloth Layer: | 1-10 Layers | National Standard: | GB/T7984-2001 |
| Core Material: | NN200 | Material: | NN |
| Working Surface: | 1.5-8.0mm | Non-working Surface: | 1.5-4.5mm |
| High Light: | UCER Nylon Conveyor Belts,Bandwidth 300mm Nylon Conveyor Belts,UCER NN Conveyor Belt |
||

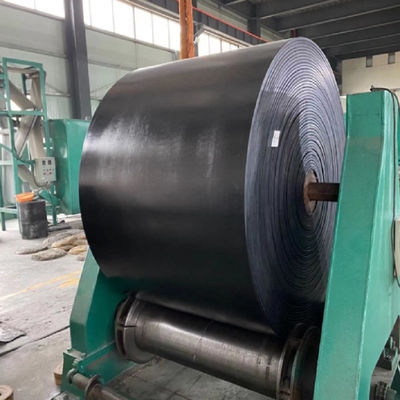

UCER Bandwidth 300mm Black Nylon Conveyor Belts
Features
1) The belt has good elasticity, impact resistance and abrasion resistance.
2) Good flexibility, easy to form grooves.
3) No mildew occurs.
technical standard:
National Standard GB/T7984-2001
Nylon (NN) conveyor belt:
Covering layer: the tensile strength is not less than 15Mpa, the elongation at break is not less than 350%, the amount of wear is less than or equal to 200mm3.
The average value of the interlayer adhesion strength of the longitudinal sample is not less than 4.5 N/mm between the cloth layers, and not less than 3.2 N/mm between the cover rubber and the cloth layers.
The full thickness longitudinal elongation at break is not less than 10%, and the full thickness longitudinal reference elongation is not greater than 4%
Adhesive strength between layers of nylon conveyor belt:
| Index item | Between layers | Between cover layer and cloth layer | |
| Covering layer thickness ≤1.5mm | Covering layer thickness>1.5mm | ||
| The average value of the longitudinal sample is not less than | 4.5 | 3.2 | 3.5 |
| The average value of the transverse sample is not less than | 4.5 | 3.2 | 3.5 |
| The highest peak value of all samples is not greater than | 20 | 20 | 20 |
| The lowest peak value of all samples is not less than | 3.9 | 2.4 | 2.9 |
