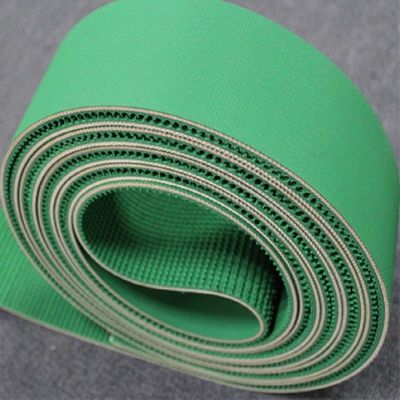

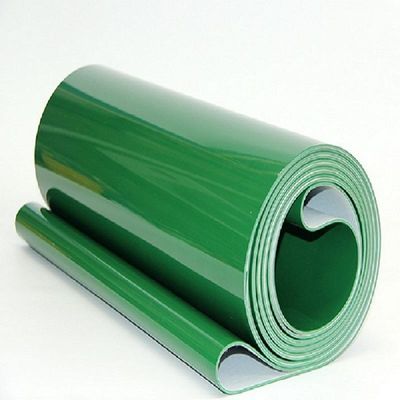

EP100 EP150 Rubber Oil Resistant Conveyor Belts

EP100 EP150 Rubber Oil Resistant Conveyor Belts

1. Specifications and models

1) According to the customer, it can be cut at will according to the width;
2) According to the different use environments, it is divided into ordinary conveyor belts and includes (ordinary type, heat-resistant type, flame-retardant type, burn-resistant type, acid-base resistant type, oil-resistant type), heat-resistant conveyor belt, cold-resistant conveyor belt, and Acid-base conveyor belt, oil-resistant conveyor belt, food conveyor belt and other models. Among them, the minimum thickness of cover rubber on ordinary conveyor belts and food conveyor belts is 3.0mm, and the minimum thickness of lower cover rubber is 1.5mm; the minimum thickness of cover rubber on heat-resistant conveyor belts, cold-resistant conveyor belts, acid and alkali resistant conveyor belts, and oil-resistant conveyor belts is 4.5 mm, the lower cover rubber should be at least 2.0mm. According to the specific conditions of the use environment, the thickness of the upper and lower cover rubber can be increased by 1.5mm;
3) According to the tensile strength of the conveyor belt cloth layer, it is divided into ordinary conveyor belts, green rubber conveyor belts and powerful conveyor belts. Powerful canvas conveyor belts are divided into nylon conveyor belts (NN conveyor belts) and polyester conveyor belts (EP conveyor belts).

Supplementary note: The strong layer of the strong conveyor belt is polyester canvas (EP), which is divided into EP100, EP150, EP200, EP250, EP300, EP350, EP400, etc.; it can also be nylon canvas (NN) , Can be divided into NN100, NN150, NN200, NN250, NN300, NN350, NN400, NN450, NN500, etc.

2. Product introduction
1) Green rubber conveyor belt (including high-strength nylon conveyor belt) products comply with the GB7984-2001 standard.
Covering layer: tensile strength not less than 15Mpa, elongation at break
= The degree is not less than 350%, the abrasion amount is less than or equal to 200mm3, the average value of the interlayer adhesion strength of the longitudinal sample is not less than 3.2N/mm between the cloth layers, and the thickness between the covering rubber and the cloth layer is not less than 2.1 N/mm. The length ratio is not less than 10%, and the longitudinal reference force elongation of the full thickness is not more than 1.5%
Nylon (NN) and polyester (EP) conveyor belts:
Covering layer: the tensile strength is not less than 15Mpa, the elongation at break is not less than 350%, the wear amount is less than or equal to 200mm3. The longitudinal elongation at break of the full thickness of less than 3.2 N/mm is not less than 10%, and the longitudinal reference force elongation of the full thickness is not more than 4%.
2) Variety:
According to the different properties of the covering rubber, it can be divided into ordinary type, heat-resistant type, flame-retardant type, cold-resistant type, acid-base resistant type, oil-resistant type, etc.
3) Specifications:
(1) Core material: CC-56, NN100, NN150, NN200, NN300, NN400
(2) Bandwidth: 100mm-2200mm

<
