NN300 Flame Retardant Conveyor Belt 13mm Thickness 1300mm Width Fire Resistant Special Conveyor Belt for Coal Mine

Name: NN300 Flame Retardant Conveyor Belt 13mm Thickness 1300mm Width Fire Resistant Special Conveyor Belt for Coal Mine
Brand: CDINDUSTRY(INTERNATIONAL).INC
SKU: NN100/NN150/NN200/NN250/NN300
Price: 54.20 USD
Availability: InStock

Brand Name:	UCER
Model Number:	NN100/NN150/NN200/NN250/NN300
MOQ:	100 meters
Price:	Negotiable
Delivery Time:	10-30 days
Payment Terms:	L/C,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Enterprise credit rating AAA

Color:

Black

Width:

1300mm

Length:

32000mm

Standard Or Nonstandard:

Standard

Model:

NN300

Thickness:

13mm

Usage:

Conveyor

Warranty:

1 Year

Packaging Details:

Iron packing, iron frame or other

Supply Ability:

10000 per month

Highlight:

NN300 Flame Retardant Conveyor Belt

13mm Thickness Fire Resistant Conveyor Belt

1300mm Width Special Conveyor Belt

Product Description

Product Overview

The NN300 Flame Retardant Conveyor Belt is a black, solid-woven special conveyor belt engineered primarily for underground conveying in coal mines. It is equally suitable for material handling in metallurgical and chemical sectors.

This flame-retardant conveyor belt is available in two variants: PVC type and PVG type.

Type Specifications

Specification	PVC Type	PVG Type
Cover Material	PVC compound (top & bottom)	Nitrile rubber blended with PVC (top & bottom)
Single-Side Cover Thickness	≥ 0.8 mm	1.5 mm – 4.5 mm
Maximum Conveying Angle	< 16°	< 20°
Application	Coal mine underground conveying

Longest Service Life

The service life of the belt body is determined by the following key factors:

A dense belt core woven from warp and weft filaments and covering cotton spinning.
Impregnation with a specially formulated PVC material to achieve extremely high bonding strength between the tape core and the cover rubber.
A specially formulated cover rubber that makes the belt body resistant to impact, tearing, and abrasion.

Mechanical Properties

The flame-retardant conveyor belt has excellent mechanical properties and can provide users with the longest service life and economical installation and use.

Product Structure

The flame-retardant conveyor belt adopts an integral belt core as the frame material. It is manufactured by dipping and coating with a PVC material that offers excellent anti-static and flame-retardant properties, followed by plasticizing.

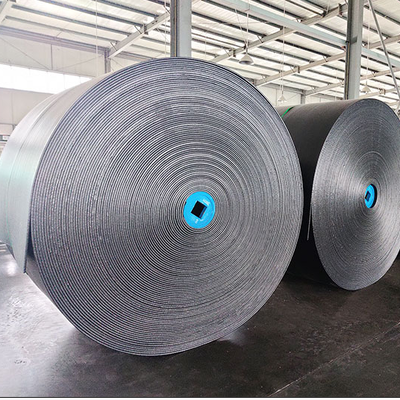

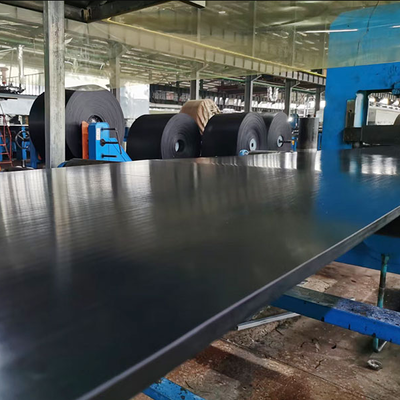

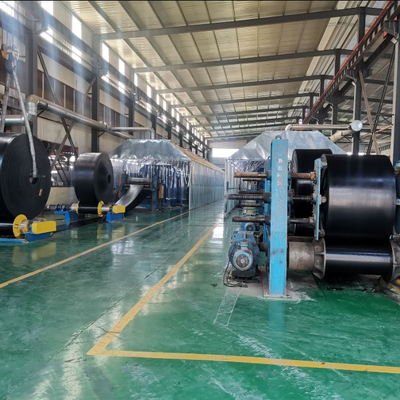

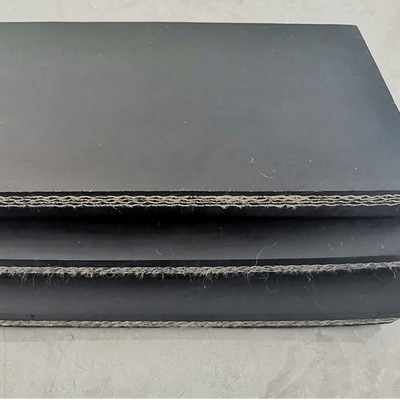

Product Images
