Special Conveyor Belts
Created with Pixso. Anti Burn 1200mm Width NN200 Special Conveyor Belts

Anti Burn 1200mm Width NN200 Special Conveyor Belts

Brand Name: UCER
Model Number: NN100/NN150/NN200/NN250/NN300
MOQ: 100 meters
Price: Negotiable
Delivery Time: 10-30 days
Payment Terms: L/C, D/P, T/T
Detail Information
Place of Origin:
China
Certification:
Enterprise credit rating AAA
Color:
Black
Width:
1200mm
Length:
7000mm
Standard Or Nonstandard:
Standard
Model:
NN100/NN150/NN200
Thickness:
6mm-30mm
Usage:
Conveyor
Warranty:
1 Year
Packaging Details:
Iron packing, iron frame or other
Supply Ability:
10000 per month
Highlight:

NN200 Special Conveyor Belts

,

1200mm Width Special Conveyor Belts

,

NN150 Burn resistant conveyor belt

Product Description

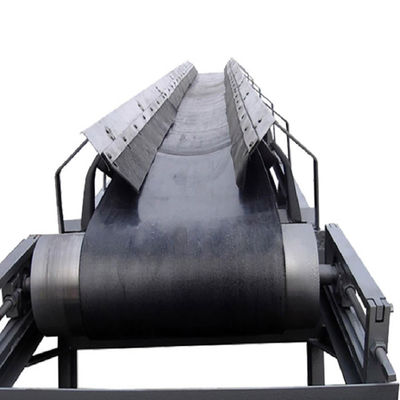

Burn-resistant conveyor belt NN200 Special Conveyor Belts



1. Features


When the cover rubber encounters high temperature, a microporous carbonized layer is produced, which is resistant to burning and can prevent further heat transfer into the belt body, reducing the internal strength of the tape. The carbonized layer generates irregular small cracks during the operation of the belt body, which is cooled by the belt body.
Inorganic materials with a diameter structure are used as the skeleton material of the burn-resistant conveyor belt. The use of this skeleton material solves the difficulty of high-temperature carbonization of cotton canvas and high-temperature shrinkage and deformation of nylon and polyester canvas used in the past, and has low strength loss at high temperatures. The characteristic of not shrinking and deforming.



The unique adhesive formula design ensures that the adhesive strength between the rubber and the frame material is much higher than that of ordinary heat-resistant belts, and the interlayer adhesive strength at high temperature is ≥3N/mm.
Withstand material temperature 200-600℃, instantaneous 800℃.
The latest type of burn-resistant conveyor belt: metal mesh core conveyor belt
The belt core is a metal spiral mesh integral belt core, which is resistant to burning, high temperature, flame retardant, puncture resistance, tear resistance, low elongation, high interlayer adhesion strength, good groove formation, and 100% vulcanized joint efficiency. The joint operation time is short and easy to implement. Among them, the use temperature of the metal mesh core high temperature resistant conveyor belt is 150 ℃-200 ℃; the use temperature of the metal mesh core burn resistant conveyor belt is 200 ℃-800 ℃; the metal mesh core conveyor belt has good performance at different temperatures. performance.

<

Variety Standards and main indicators
Ordinary steel cord conveyor belt GB/T9770-2001
Flame-retardant steel cord conveyor belt MT668-1997
General flame-retardant steel cord conveyor belt MT668-1997
Heat-resistant steel cord conveyor belt HG2297-92
Wear-resistant steel cord conveyor belt Shaoboer wear amount ≤90mm 3
Acid, alkali and oil resistant steel cord conveyor belt HG4-846
HG4-846
Cold-resistant steel cord conveyor belt Brittleness temperature -40℃



Anti Burn 1200mm Width NN200 Special Conveyor Belts 0Anti Burn 1200mm Width NN200 Special Conveyor Belts 1
