Tear-resistant high-temperature-resistant Steel Cord Conveyor Belts

The steel wire rope lifting belt has high tensile strength, good impact resistance, long service life, small elongation in use, good trough formation, good flexural resistance, and is suitable for long distances, large transportation distances, and high speed conveying materials.

1. Features

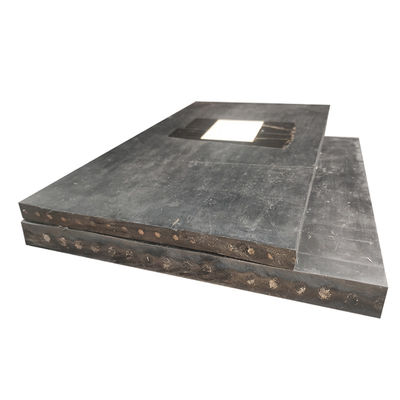

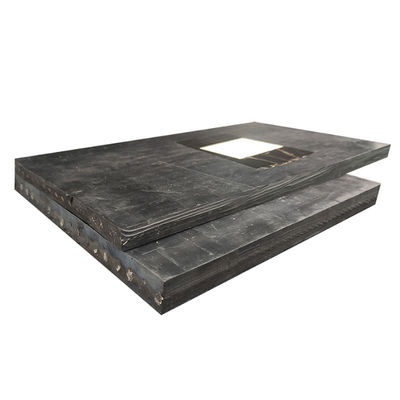

The product is composed of core rubber, steel wire rope, covering layer and edge rubber
·Usage: Widely used in coal, mining, building materials, cement, ports, metallurgy, electric power, chemical industry and other fields to transport materials.

2. Common Damage Forms

There are many forms of damage to the wire rope conveyor belt, mainly: serious wear on the rubber surface; ripped edges; tearing. Among them, conveyor belt tearing is the most harmful form of damage. It mainly refers to the longitudinal tearing of the conveyor belt caused by the sharp impurities in the conveying material being inserted into the conveyor belt or the steel wire in the conveyor belt is drawn out.
Although the tearing of the conveyor belt is an accidental damage, it is very destructive. If it is not controlled in time, it will cause the entire conveyor belt to tear (accidents of tearing the conveyor belt of thousands of meters occur from time to time in the port), which will cause production shutdown, bringing huge direct and indirect economic losses to the port. Therefore, the protection and detection of the tearing of the conveyor belt have always been paid attention to by the conveyor belt manufacturers and users. At the same time, the relevant national standards also require that the conveyor belt should be installed to prevent longitudinal tearing and tearing detection devices.

3. Classification

By structure: ordinary type and impact-resistant and tear-resistant type
By purpose: In addition to ordinary types, there are also types of wear resistance, heat resistance, cold resistance, acid and alkali resistance, flame retardancy, tear resistance, flame resistance, and ozone resistance
By variety: According to the performance of the covering rubber, it can be divided into various specialized types with higher strength than ordinary conveyor belts, and longer length, which can reduce the number of transfer points and save power and management costs.
