| Brand Name: | UCER |
| Model Number: | ST630/ST800/ST1000/ST1250/ST1600/ST2000 |
| MOQ: | 100 meters |
| Price: | Negotiable |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, D/P, T/T |
Heat-resistant conveyor belt ST2000 Special Conveyor Belts
1. Concept

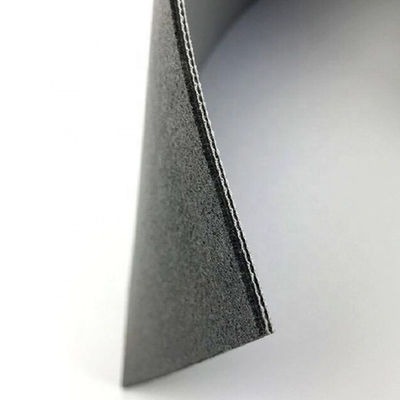

The heat-resistant conveyor belt [1] is made of multi-layer rubber cotton canvas (polyester cotton cloth) or polyester canvas covered with high-temperature or heat-resistant rubber and bonded together by high-temperature vulcanization. It is suitable for conveying hot coke and cement below 175°C. , Slag and hot castings, etc.
Type I: It can withstand test temperature not greater than 100℃, the highest short-time operating temperature is 150℃, code T1.
Type Ⅱ: It can withstand the test temperature of not more than 125℃, the maximum short-time operating temperature is 170℃, and the code is T2.
Type Ⅲ: It can withstand the test temperature of not more than 150℃, the highest short-time operating temperature is 200℃, and the code is T3.
Type IV: Can withstand test temperature not greater than 175℃, maximum short-time operating temperature 250℃, code T4.
2.Use
It is mainly used in metallurgy, construction and other industries to transport high-temperature materials such as sinter, coke, cement clinker, etc. The material temperature does not exceed 800℃, and the belt surface temperature does not exceed 220℃. Features: Using EPDM rubber as the covering layer, the skeleton material adopts domestic special high-temperature resistant canvas, and the unique formula design solves the key problems of high saturation of ethylene propylene rubber, poor adhesion, and low interlayer adhesion. . It has the characteristics of light belt body, long life (about 2-4 times) and good heat resistance.
|
|
| Brand Name: | UCER |
| Model Number: | ST630/ST800/ST1000/ST1250/ST1600/ST2000 |
| MOQ: | 100 meters |
| Price: | Negotiable |
| Packaging Details: | Iron packing, iron frame or other |
| Payment Terms: | L/C, D/P, T/T |
Heat-resistant conveyor belt ST2000 Special Conveyor Belts
1. Concept
The heat-resistant conveyor belt [1] is made of multi-layer rubber cotton canvas (polyester cotton cloth) or polyester canvas covered with high-temperature or heat-resistant rubber and bonded together by high-temperature vulcanization. It is suitable for conveying hot coke and cement below 175°C. , Slag and hot castings, etc.
Type I: It can withstand test temperature not greater than 100℃, the highest short-time operating temperature is 150℃, code T1.
Type Ⅱ: It can withstand the test temperature of not more than 125℃, the maximum short-time operating temperature is 170℃, and the code is T2.
Type Ⅲ: It can withstand the test temperature of not more than 150℃, the highest short-time operating temperature is 200℃, and the code is T3.
Type IV: Can withstand test temperature not greater than 175℃, maximum short-time operating temperature 250℃, code T4.
2.Use
It is mainly used in metallurgy, construction and other industries to transport high-temperature materials such as sinter, coke, cement clinker, etc. The material temperature does not exceed 800℃, and the belt surface temperature does not exceed 220℃. Features: Using EPDM rubber as the covering layer, the skeleton material adopts domestic special high-temperature resistant canvas, and the unique formula design solves the key problems of high saturation of ethylene propylene rubber, poor adhesion, and low interlayer adhesion. . It has the characteristics of light belt body, long life (about 2-4 times) and good heat resistance.
